Fast Mini-Controller with Rugged Housing

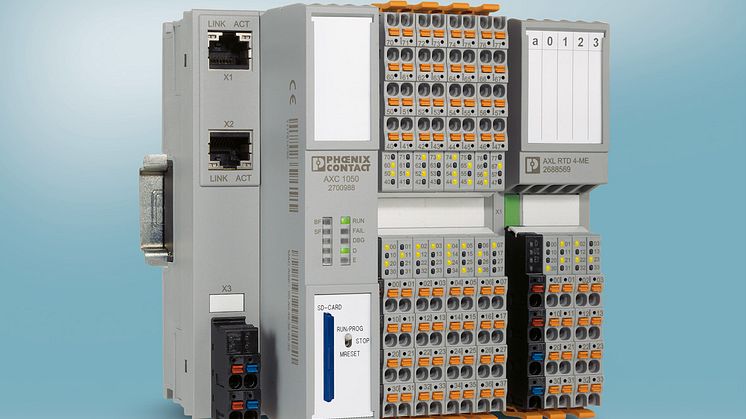

The new AXC 1050 controller from Phoenix Contact’s Axiocontrol range provides excellent performance and easy usage. It is particularly suited for installation in harsh industrial settings.

For the construction of local stations, the I/O modules of the Axioline I/O system can be added on to the controller directly via the built-in Axiobus. The controller’s Ethernet interfaces enable integration with existing networks and connection to other decentralized I/Os. A range of communication protocols are available for this: TCP/IP, UDP, Modbus/TCP, Profinet.

Thanks to a built-in 2 second uninterruptible power supply (UPS), the Axiocontrol controller is particularly resilient against power outages. This means that if there is a power outage, applicative measures to ensure system availability can be instated. Designed for deployment in highly demanding environments, the special AXC 1050/XC mini-controller operates at an extended temperature range of -40 up to +60 °C.

Designed to work in tandem with the Axioline range of IP20 I/O, which also has a number of new modules within range, the AXC 1050 Axio Controller expands the Phoenix Contact range of PLCs, with 2 Ethernet interfaces and programming capabilities according to the IEC 61131-3, by using Phoenix Contact software, PC Worx or PC Worx Express.
