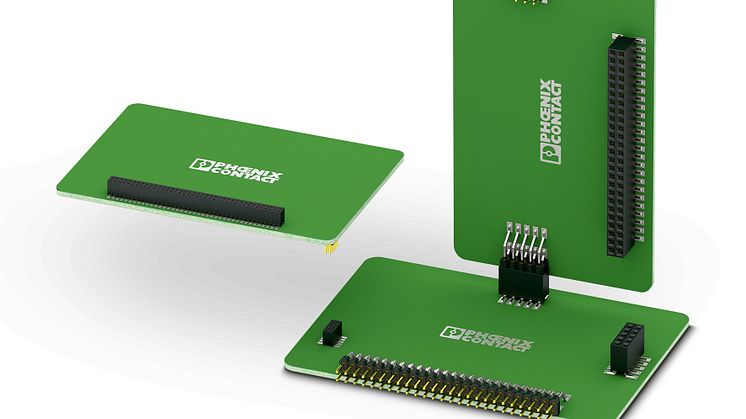

Board-to-Board connectors for compact PCB connections
With the FQ series board-to-board connectors designed for universal use, Phoenix Contact is providing a compact and cost-effective solution for device-internal PCB connections. These are characterised by their application-oriented and cost-optimised design and are suitable for integration into fully automated SMT processes.
The SMD male and female strips with a 1.27 mm pitch for currents of up to 1 A can be used to realise mezzanine connections. The SMD male and female strips with a 2.54 mm pitch are rated for currents of up to 3 A. With the horizontal and vertical design versions, device manufacturers can realise mezzanine, coplanar, or mother-daughter arrangements, and therefore create flexible PCB connections for various device applications.
All FQ series board-to-board connectors are suitable for test voltages of up to 500 V (AC), and the series features solutions for 10 to 80 contacts. The double-sided contact system ensures reliable mechanical and electrical connections.
